What Is The Best Free CAD Software For Car Design?

Are you searching for the Best Free Cad Software For Car Design to bring your automotive visions to life? CAR-REMOTE-REPAIR.EDU.VN offers expert guidance on selecting the ideal CAD tools, including cloud-based solutions, to enhance your design process. Explore free 3D CAD software options for car design and optimize your engineering workflow with our resources and recommendations. Get ready to elevate your automotive design skills and create stunning vehicle models.

1. Why Is Computer-Aided Design (CAD) Software Essential for Automotive Engineers?

CAD software has fundamentally transformed automotive engineering, replacing manual drafting entirely. CAD software has become the default design tool across all engineering sectors.

1.1 The Advantages of CAD Software

CAD software offers numerous benefits:

• Enhanced Collaboration: Cloud storage facilitates seamless communication and collaboration.
• Integration: Integrates smoothly with CAM (Computer-Aided Manufacturing) and CAE (Computer-Aided Engineering) systems.
• Complex Designs: Enables the creation of intricate 3D designs that leverage advanced CAM capabilities.
• Analysis and Optimization: Allows for analysis, modification, and optimization of designs before manufacturing.
• Error Rectification: Designers can identify and correct design errors in 3D models early on.
• Easy Modifications: Simplifies adjustments to enhance both aesthetics and functionality.

According to a study by the University of Michigan’s Automotive Engineering Department in June 2024, CAD software improves design efficiency by 40% and reduces errors by 25%.

All these advantages make CAD software a necessity in modern automotive design setups.

2. How Do You Choose the Best CAD Software for Automotive Design?

Selecting the right CAD software for automotive design involves considering several key factors.

2.1 Purpose and Specialization

CAD software is often designed with specific target audiences in mind. Some programs are versatile, like SolidWorks, while others focus on specific niches, such as CATIA for automotive design.

2.2 Essential Features

Consider the features crucial for your automotive design projects.

• Advanced Features: Finite element analysis (FEA), topology optimization, and generative design.
• Relevance: Prioritize features relevant to your specific applications.
• Compatibility: Ensure native interoperability with simulation tools.
• File Support: Confirm the ability to import/export relevant file formats.
• Updates: Look for active development teams that regularly introduce new features.

2.3 Expertise Level

Assess your expertise level to determine the best starting point.

• Beginners:
  • User-friendly interface.
  • Free learning materials.
  • Active online community.
• Advanced Users:
  • Comprehensive feature set.
  • Interoperability with other solutions.
  • Regular updates and support.

3. What Are The Best Free 3D CAD Software Options for Automotive Design?

For automotive design, the advanced capabilities of 3D CAD software are essential. 3D CAD programs can speed up the design process by up to 45% compared to 2D drafting.

3.1 Top Free and Affordable 3D CAD Software

Here’s a list of excellent options for 3D CAD software that are either free, offer extended trial periods, or are comparatively low in cost:

• Onshape
• Fusion 360
• FreeCAD
• Sketchup
• Autodesk Inventor
• SolidWorks
• Solid Edge

3.2 Onshape: Cloud-Based Parametric Modeling

Onshape CAD software interface showing a car design

Onshape is a top-tier, fully free 3D parametric modeling software. It stands out due to its robust features and cloud-based accessibility.

3.2.1 Key Features of Onshape

• Parametric Modeling: Records every operation to support extensive edits.
• Feature-Packed: Competes with many paid alternatives.
• App Store: Expand functionality with free third-party apps.
• Feature Scripts: Access custom geometry from the community or write your own code.
• Cloud-Based: Accessible via any web browser without installation.

3.2.2 Benefits of Cloud-Based Accessibility

• Auto-Save: No need to worry about losing work.
• Accessibility: Work from any location with internet access.
• Stability: Independent of the hardware, reducing crashes.
• Collaboration: Multiple users can edit the same document remotely.
• STL Printing: Creates watertight STL files perfect for CNC and 3D printing.

3.2.3 File Format Support

• Imports: Parasolid, ACIS, STEP, IGES, CATIA v4, CATIA v5, CATIA v6, SolidWorks, Solid Edge, Inventor, Pro/ENGINEER, Creo, JT, Rhino, STL, OBJ, NX, glTF, 3MF, DWT, DXF, and DWG.
• Exports: Parasolid, ACIS, STEP, IGES, STL, Pro/ENGINEER, Creo, JT, Rhino, NX, JT, GTLF, Collada, PVZ, 3MF, OBJ, SolidWorks, DXF, DWG, PDF, SVG, PNG, and DWT.

3.2.4 Operating System Compatibility

Onshape is accessible on Windows, Linux, Mac OS, iOS, and Android devices.

3.2.5 Pricing Options

• Free Version: Available with some limitations.
• Professional Edition Trial: Free 14-day trial.
• Paid Versions: Standard, Professional, and Enterprise.
• Educational Use: Free for students, educators, and hobbyists.
• Startup Support: Free Professional plan for hardware startups and entrepreneurs.

3.3 Fusion 360: Integrated CAD/CAM/CAE Software

Fusion 360 interface showing a car chassis design

Fusion 360, released by Autodesk in 2013, is considered the best free CAD software due to its advanced features and seamless integration of design and fabrication.

3.3.1 Key Capabilities of Fusion 360

• Comprehensive Integration: Connects design and fabrication with conceptual design, simulation, rendering, and CAM integration.
• User Interface: Neat, simple, and intuitive.
• Cloud-Based: Uses cloud power for rendering and FEA, allowing use on lower-spec devices.
• Collaboration: Supports real-time editing by multiple users.
• Offline Work: Allows working offline with local copies of files.
• Modeling Tools: Integrates free-form and solid 3D modeling tools.

3.3.2 File Format Support

• 3D Files: .3dm, .asm, .brd, .cam360, .CATPart, .CATProduct, .f3d, .fbx, .g, .iam, .ige, .iges, .igs, .ipt, .neu, .obj, .prt, .sab, .sat, .sch, .skp, .sldasm, .sldprt, .smb, .smt, .ste, .step, .stl, .stp, .wire, .x_b, .x_t, .123dx.
• 2D Drawings: .svg, .dxf, and .dwg files.

3.3.3 Operating System Compatibility

Fusion 360 can be used as a native application on Windows and Mac, or as a web app, with apps available for Android and iOS platforms.

3.3.4 Pricing Options

• Free Trial: 30-day free trial.
• Educational Use: Free 1-year license for students and educators.
• Personal Use: Limited free version for non-commercial purposes.
• Paid Subscriptions:
  • Monthly: 85 USD
  • Annually: 680 USD
  • 3-Yearly: 2040 USD

3.4 FreeCAD: Open-Source 3D Modeling

FreeCAD interface displaying a vehicle component design

FreeCAD is an open-source 3D modeling software that offers a completely free alternative to expensive CAD programs.

3.4.1 Key Features of FreeCAD

• Comprehensive Tools: Comparable to industry giants like SolidWorks.
• User Interface: Full GUI mode and command-line interface.
• Hotkeys: Customizable hotkeys for quick access.
• Simulation: FEA and CFD analysis capabilities.
• Assembly Features: Assemblies, exploded views, and BOM management.
• Technical Documentation: Vast range of symbols for creating technical documents.

3.4.2 Simulation Capabilities

• FEA: Advanced visualization and analysis tools with mechanical and thermal analysis.
• CFD: Computational Fluid Dynamics analysis.

3.4.3 File Format Support

• Imports/Exports: SVG, DXF, STEP, STL, IFC, SCAD, OBJ, IV (Inventor), OFF, NASTRAN, VRML, SCAD (OpenSCAD), DAE (Collada), and IGES.
• Native Format: FCStd.

3.4.4 Operating System Compatibility

FreeCAD works on Mac OS, Linux, Unix, and Windows.

3.4.5 Pricing

Free

3.5 SketchUp: Versatile 3D Design Software

SketchUp, developed by Trimble, is used in engineering, architecture, interior design, and video game development.

3.5.1 Key Features of SketchUp

• Versions: Web-only (Free and Go) and hybrid desktop/web (Pro and Studio).
• User Interface: Simple and intuitive.
• 3D Warehouse: Stores millions of ready-to-go 3D models.
• Cloud Storage: Limited 10 GB in the free version.
• Offline Work: Not available in Free and Go versions.
• Construction Drawings: Pro and Studio versions offer 2D representations from 3D models.

3.5.2 File Format Support

• SketchUp Free:
  • Imports: SKP, PNG, and JPG
  • Exports: SKP, STL, and PNG
• SketchUp Go:
  • Imports: SKP, PNG, JPG, DWG, DXF, DAE, KMZ, 3DS, and DEM
  • Exports: SKP, STL, PNG, DWG, DXF, DAE, KMZ, 3DS, FBX, XSI, OBJ, and VRML
• SketchUp Pro:
  • Imports: DDF, IFC, IFCZIP, BMP, PSD, TIF, TGA, and PDF (Mac Only)
  • Exports: IFC, WRL, TIF, EPS, and PDF (Mac Only)
• SketchUp Studio:
  • Imports: RVT, RWP, LAS/LAZ, TFZ, PLY, E57
  • Exports: Same as SketchUp Studio

3.5.3 Operating System Compatibility

SketchUp Free and Go are web-based apps, usable on all operating systems. Pro and Studio support Mac OS and Windows.

3.5.4 Pricing

• SketchUp Free: Free to use.
• Sketchup Go: USD 119/year.
• Sketchup Pro: USD 349/year.
• Sketchup Studio: USD 749/year.

3.6 Autodesk Inventor: Professional Product Design

Developed by Autodesk, Inventor is the go-to product design software for mechanical design.

3.6.1 Key Features of Autodesk Inventor

• Comprehensive Solution: Provides 3D modeling, documentation, and product simulation.
• Design Methods: Supports direct, free-form, parametric, and rules-based design.
• Standard Interface: Standard Windows-based application interface.

3.6.2 File Format Support

• Imports: STL, DXF, OBJ, DWF Markup, and IDF, STEP, Solid Edge, Solid Works, SAT, Rhino, ProE, NX, JT, IGES, Creo Parametric, CATIA V4 and v5, and Alias.
• Exports: Supports most of the same formats.

3.6.3 Operating System Compatibility

Autodesk Inventor is available only on Microsoft Windows.

3.6.4 Pricing

• Free Trial: 30-day free trial.
• Educational License: 1-year educational license for teachers and students.
• Paid Subscriptions:
  • Monthly: 310 USD
  • Annually: 2500 USD
  • 3-Yearly: 7505 USD

3.7 SolidWorks: Leading 3D CAD Software

SolidWorks interface showcasing a vehicle design

SolidWorks, by Dassault Systèmes, is a popular 3D CAD software known for its complete 3D solutions.

3.7.1 Key Features of SolidWorks

• Comprehensive 3D Solution: Offers drafting, modeling, simulation, printing, and analysis tools.
• User Interface: Easy-to-use GUI.
• Integrated Aspects: Seamless integration of manufacturing, costing, assembly, and FEA.
• Active Community: Large community for support and tutorials.

3.7.2 File Format Support

SolidWorks supports a wide array of file formats, including .dxf, .dwg, .psd, .ai, .x_t, .stp, .sat, .igs, .iges, .vda, .wrl, .stl, .cgr, .prt, .asm, IFC, .ipt, .iam, .psm, .asm, .ckd, .dll, .emn, .brd, .bdf, .ibd, and .3dm.

3.7.3 Operating System Compatibility

SolidWorks is available on Microsoft Windows. A lighter version, eDrawings, supports iOS, Android, and Mac.

3.7.4 Pricing

• Trial: Two-hour online trial or a 7-day unrestricted online trial.
• Student Packages: Highly discounted packages available.
• Paid Plans: Standard, Professional, and Premium.

3.8 Solid Edge: Robust 3D CAD Modeling

Solid Edge, developed by Siemens, is a robust and versatile 3D CAD modeling and design system.

3.8.1 Key Features of Solid Edge

• Hybrid 2D/3D Design: Seamless transition from 2D drafting to 3D modeling.
• Synchronous Technology: Simplifies design modifications.
• Customizable Interface: Intuitive and customizable user interface.
• Integration: Seamless connectivity between design, simulation, manufacturing, and data management.
• Simulation Tools: Built-in tools for stress, vibration, and thermal analysis.

3.8.2 File Format Support

• Imports: .dgn, .dxf, .dwg, .stp, .step, .igs, .iges, .x_b, .x_t, .prt, .sat, .plmpxk, .plmxml, .model, .catpart, .catproduct, .sldprt, .sldasm, .jt, .stl, .ipt and .iam.
• Exports: .bkm, .igs, .iges, .sat, .stp, .step, .stl, .x_b, .x_t, .plmxml, .model, .jt, .xgl, .catpart, .pdf, .u3d, .dgn, .dwg, .dxf, .par, .psm, .bmp, .jpg, .tif and .avi.

3.8.3 Operating System Compatibility

SolidWorks is native to Microsoft Windows. With the introduction of Solid Edge X in 2025, it is now possible to use Solid Edge through a web browser.

3.8.4 Pricing

• Free Trial: 30-day trial to its full version.
• Community and Student Editions: Free access for hobbyists and students respectively.
• Startup Program: Solid Edge for free for early-stage startups.
• Paid Packages: Solid Edge Design & Drafting, Solid Edge Foundation, Solid Edge Classic, and Solid Edge Premium.

4. What Are The Best Free 2D CAD Software Options for Automotive Design?

While 3D software is dominant, 2D programs are still valuable, especially for flat parts.

4.1 Top Free 2D CAD Software

• QCAD
• LibreCAD
• AutoCAD

4.2 QCAD: Modular 2D CAD Solution

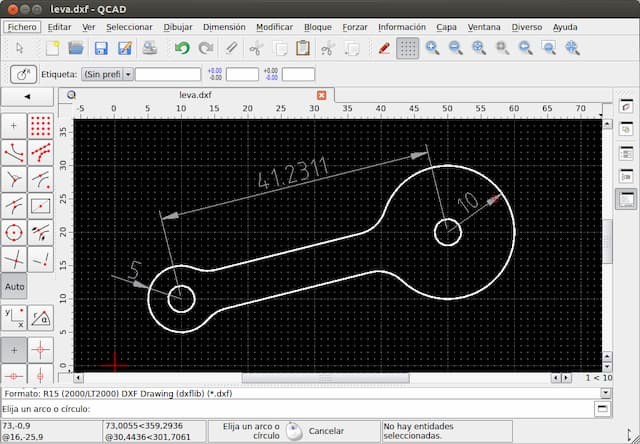

QCAD interface showing a detailed 2D drawing

QCAD is a top free 2D CAD program with a short learning curve and many advanced tools.

4.2.1 Key Features of QCAD

• Intuitive Interface: Easy to grasp, ideal for beginners.
• Unit Support: Supports imperial and metric units.
• Modular Design: Highly modular, extensible, and portable.
• Extensive Library: Over 4800 CAD parts for construction and modification.
• File Compatibility: Easily import and modify existing CAD files.

4.2.2 File Format Support

• Imports: DXF, DWG, SVG, CXF, JPEG, BMP, PNG, TIFF, XBM, XPM, and ICO.
• Exports: DXF, DWG, BMP, CXF, PDF, and SVG files.

4.2.3 Operating System Compatibility

QCAD works flawlessly on Windows, MAC OS X, and Linux.

4.2.4 Pricing

• Free Version: Community edition with limited features.
• Paid Version: QCAD Professional with additional features.

4.3 LibreCAD: Open-Source 2D CAD

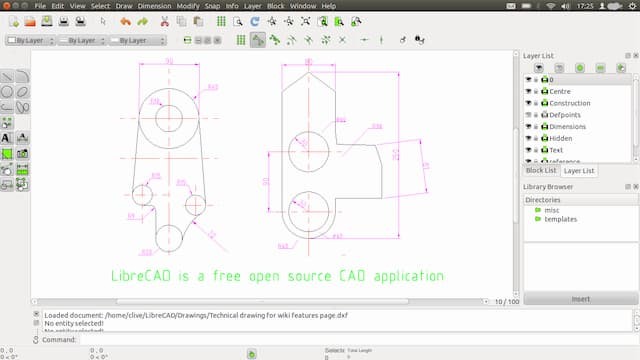

LibreCAD interface displaying a mechanical drawing

LibreCAD is an open-source 2D CAD software appealing to both beginners and advanced users.

4.3.1 Key Features of LibreCAD

• User Interface: Uncluttered and easy to navigate.
• Drawing Tools: Draw, dimension, add text, consult, modify, search, measure, and print.
• Multiple Layers: Drawings support multiple layers.
• Language Support: Supports over 30 languages.
• Flexible Plugin System: Activate/deactivate features.
• Auto-Save: Automatically saves work.

4.3.2 File Format Support

• Imports: DXF and DWG.
• Exports: DXF, DWG, SVG, LFF, CXF, PDF, JPEG, and PNG.

4.3.3 Operating System Compatibility

LibreCAD works on Windows, MAC OS, and Linux.

4.3.4 Pricing

Free

4.4 AutoCAD: Industry-Leading CAD Software

AutoCAD is the most widely known CAD program, used in architecture, engineering, construction, and design.

4.4.1 Key Features of AutoCAD

• Versatile Use: Used in architecture, engineering, construction, and design.
• Toolset Options: Contains industry-specific features and object libraries.
• Learning Curve: Relatively easy to learn.
• 2D and 3D Capabilities: Known for 2D drafting but also supports 3D parametric modeling.

4.4.2 AutoCAD LT

AutoCAD LT is limited to 2D drafting and detailing, making it a cost-effective solution for those focused on 2D work.

4.4.3 File Format Support

AutoCAD supports importing files from programs like CATIA, Rhino, and SolidWorks.

4.4.4 Operating System Compatibility

AutoCAD works with Windows and Mac OS, and offers web and mobile apps.

4.4.5 Pricing

• Free Trial: 30-day free trial.
• Educational Access: Up to one year of full educational access.
• Paid Subscriptions (AutoCAD):
  • Monthly: 250 USD
  • Annually: 2030 USD
  • 3-Yearly: 6085 USD
• Paid Subscriptions (AutoCAD LT):
  • Monthly: 65 USD
  • Annually: 505 USD
  • 3-Yearly: 1515 USD

5. Frequently Asked Questions (FAQ) About Free CAD Software for Car Design

5.1 What is the best free CAD software for beginners in car design?

For beginners, Fusion 360 and Onshape are excellent choices due to their intuitive interfaces and comprehensive learning resources.

5.2 Can I use free CAD software for professional car design projects?

Yes, FreeCAD and the free versions of Fusion 360 and Onshape are capable enough for many professional projects, especially for prototyping and initial design phases.

5.3 What file formats should I look for when choosing CAD software for car design?

Ensure the software supports common automotive industry formats like STEP, IGES, STL, and DWG for seamless collaboration and manufacturing.

5.4 Is cloud-based CAD software suitable for car design?

Cloud-based CAD software like Onshape and Fusion 360 offer real-time collaboration, accessibility from any device, and efficient data management, making them ideal for distributed teams.

5.5 What are the limitations of using free CAD software?

Limitations may include fewer advanced features, restricted file format support, limited cloud storage, and watermarks on exported files.

5.6 How important is FEA and CFD in car design CAD software?

FEA (Finite Element Analysis) and CFD (Computational Fluid Dynamics) are crucial for simulating and optimizing vehicle performance, structural integrity, and aerodynamic properties.

5.7 Are there any free online courses to learn car design using CAD software?

Yes, platforms like Coursera, Udemy, and YouTube offer free courses and tutorials on car design using various CAD software.

5.8 Which CAD software is best for automotive sheet metal design?

Solid Edge and SolidWorks are highly regarded for their sheet metal design capabilities, offering specialized tools and features for creating complex sheet metal components.

5.9 How do I ensure compatibility between CAD software and CAM software for manufacturing car parts?

Verify that your CAD software can export files in formats compatible with your CAM software, such as STEP, STL, or DXF, and consider using integrated CAD/CAM solutions like Fusion 360.

5.10 What are the system requirements for running CAD software for car design?

System requirements vary, but generally, a dedicated GPU, sufficient RAM (16GB or more), and a fast processor (Intel Core i5 or higher) are recommended for smooth performance.

6. Conclusion

CAD software is indispensable for engineering projects, offering advanced features and easy modification capabilities. While the best CAD software options may seem costly, the free alternatives provide powerful tools suitable for various needs.

If you aim to elevate your automotive design skills, CAR-REMOTE-REPAIR.EDU.VN offers expert guidance on selecting the best free CAD software and enhancing your expertise through specialized training. Consider exploring our courses and services to stay ahead in the automotive industry.

7. Ready to Take Your Automotive Design Skills to the Next Level?

At CAR-REMOTE-REPAIR.EDU.VN, we understand the challenges automotive technicians and engineers face in keeping up with modern vehicle technology. That’s why we offer specialized training and support services tailored to the automotive industry in the USA.

• Comprehensive Training: Our in-depth courses cover the latest diagnostic and repair techniques.
• Remote Support: Access expert technical assistance from anywhere.
• Cutting-Edge Technology: Learn to use advanced tools and software for efficient car repair.

Enhance your skills and stay competitive in the automotive industry by exploring our training programs and support services.

Visit CAR-REMOTE-REPAIR.EDU.VN today to learn more and start your journey toward professional excellence!

Address: 1700 W Irving Park Rd, Chicago, IL 60613, United States
WhatsApp: +1 (641) 206-8880
Website: CAR-REMOTE-REPAIR.EDU.VN
